Objet30 Pro PolyJet 3D Printer & PolyJet Waterjet
Objet30 Pro PolyJet 3D Printer & PolyJet Waterjet
The world’s most versatile desktop 3D printer, the Objet30 Pro™ packs specialized materials and a range of print modes into a quiet, easy-to-use system. These capabilities give you the power to 3D print the part you need, when you need it — and a different part tomorrow.
The Objet30 Pro employs patented PolyJet® technology, which works by jetting state-of-the-art photopolymer materials in ultra-thin layers onto a build tray — layer by layer — until the prototype is completed.
Objet30 Pro Key Features
Create parts with the precision, look and feel of real production parts
Compact Desktop Machine
Combines the accuracy and versatility of a high-end rapid prototyping machine with a small footprint that is ideal for an office environment.
8 Material Types Available
The Objet30 Pro offers the ability to print in rigid materials in multiple opaque shades as well as transparent, for beautiful detail visualization and prototypes that include see-through components. Plus specialized materials such as High Temperature and Simulated Polypropylene for production parts and snap fit applications.
Print with exceptional detail
Ideal for producing Consumer Goods, Consumer Electronics, and Medical Devices.
3D PRINTER SPECIFICATIONS | |
---|---|
Materials | Rigid Opaque (VeroWhitePlus™, VeroGray™, VeroBlue™, VeroBlackPlus™) Transparent (VeroClear™) Simulated Polypropylene (Rigur™ and Durus™) High Temperature |
Support Material | SUP705 (WaterJet removable) |
Maximum Build Size (XYZ) | 294 x 192 x 148.6 mm (11.57 x 7.55 x 5.85 in.) |
System Size and Weight | 82.5 × 62 × 59 cm (32.28 × 24.4 × 23.22 in.); 106 kg (234 lbs) |
Resolution | X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1600 dpi |
Accuracy | 0.1 mm (0.0039 in.) varies depending on part geometry, size, orientation, material and post-processing method |
Minimum Layer Thickness | 28 microns (0.0011 in.) for Tango materials; 16 microns (0.0006 in.) for all other materials |
Build Modes | High quality: 16-micron (.0006 in.) resolution High speed: 28-micron (.001 in.) resolution |
Software | Objet Studio ™ intuitive 3D printing software |
Workstation Compatibility | Windows OS |
Network Connectivity | Ethernet TCP/IP 10/100 base T |
Operating Conditions | Temperature 18-25°C (64-77°F); relative humidity 30-70% |
Power Requirements | Single phase: 100-200V; 50-60Hz; 7A or 200-240V; 50-60Hz 3.5A |
Regulatory Compliance | CE/FCC/RoHS |
PolyJet Waterjet
n this section you will find relevant documentation for the following PolyJet Waterjet Systems:

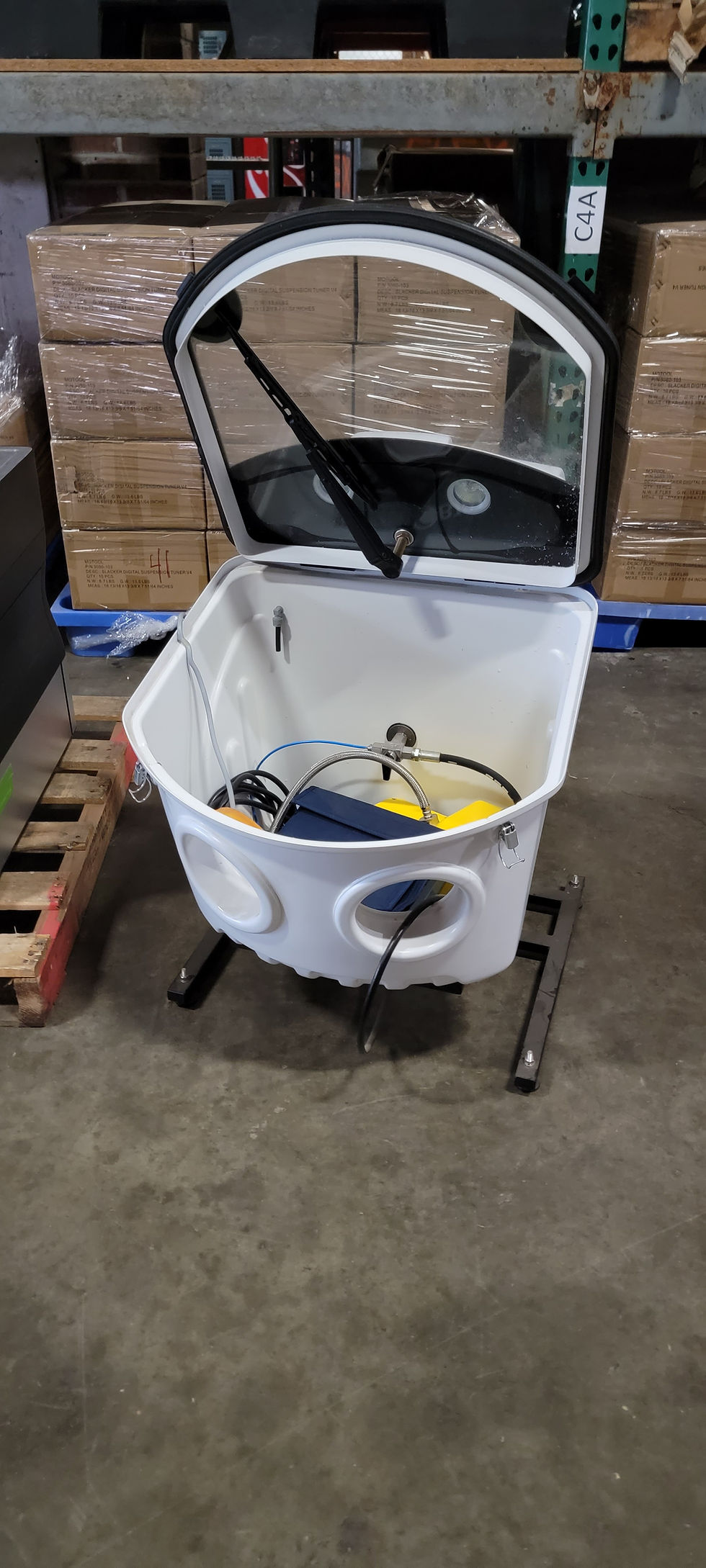

- Objet Desktop WaterJet cleaning unit provides easy and fast cleaning of Support material from models printed on Stratasys 3D printing systems.
- Objet WaterJet cleaning unitprovides easy and fast cleaning of Support material from models printed on Stratasys 3D printing systems.
- Balco WaterJet provides easy and fast cleaning of support material from models printed on Stratasys 3D printing systems.
The WaterJet comes equipped with two types of nozzles, enabling you to choose the flow rate and pressure suitable for cleaning, both delicate and robust models.

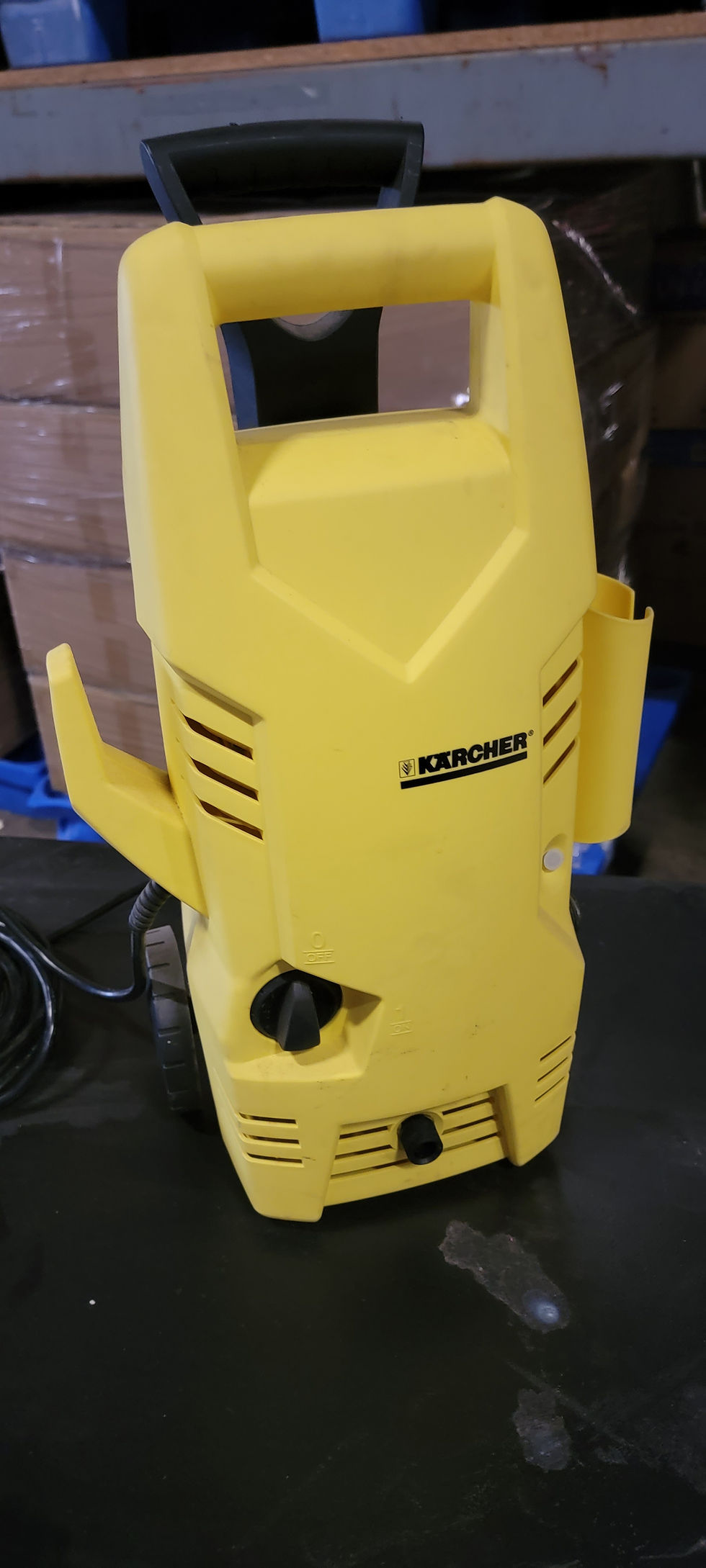

- Krumm RK1600 VA Cleaning Unit uses water pressure to remove Support material from models printed on Stratasys 3D printing systems.
